350830 Lithium Polymer Battery 3.7v 50mah for Headset Battery

Product Categories

Shenzhen Xinglong Electronics Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : XL

Application : Toys, Power Tools, Home Appliances, Boats, Electric Power Systems, Uninterruptible Power Supplies

Model Number : 300830

Place of Origin : Guangdong,China

Type : Li-polymer

specifications : 300830

Product Name : polymer lithium battery

Capacity : 50mah

Voltage : 3.7v

Size : H3mm*W8mm*L30mm

Temperature : -20~60

Cycle Life : 500 Times

Warranty : 12Months, 12Months

Scope of use : Selfie stick,Bluetooth headset,toys,humidifier

Certification : CE

MOQ : 50

Price : $1.10-2.20

Contact Now

Product Description

No.	Item	Specifications	Remak
1.	Specifications(300830)	capacity:50mAh	0.2C Rate discharge after standard charge
2.	voltage	3.7V	Mean operation voltage during standard
3.	Voltage at end of discharge	2.75V	Discharge cut-off voltage
4.	Charging cutoff voltage	4.2V
5.	Impedance	≤200mΩ	3.7v 50mah lipo battery
6.	Standard charging	Constant current 0.2C
		Constant voltage 4.2V
		Cut-off current≤0.01C
7.	Standard discharge	Constant current 0.2C
7.	Standard discharge	End voltage 2.75V
8.	Fast charge	Constant current 0.5C
		Constant voltage 4.2V
		Cut-off current≤0.02C
9.	Fast discharge	Constant current 0.5C
9.	Fast discharge	End voltage 2.75V
10.	Maximum continuous discharge current	1.0C
11.	Operation	Charge: 0~45°C	60±25%R.H
11.	Temperature range	Discharge: -20~60°C	60±25%R.H
12.	Cycle life	500times
13.	Storage temperature	-20 ~ 45°C
14.	Weight	2g
15.	Dimension(mm)	HeightWidthLength	3830(mm)

Range of application

Connector

Reasons for choosing

1.We not only supply lithium batteries, but also provide customers with various solutions.

2.High capacity and high density lithium ion battery.

3.Stable battery performance and high utilization rate.

4.Green environmental protection materials, safe and pollution-free.

5.Battery short circuit protection, safe to use.

6.Factory price.

7.Models complete, can be customized according to customer requirements.

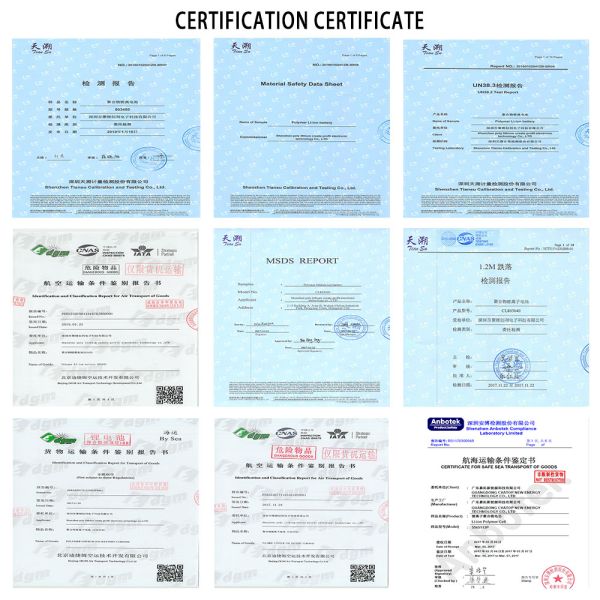

Certifications
